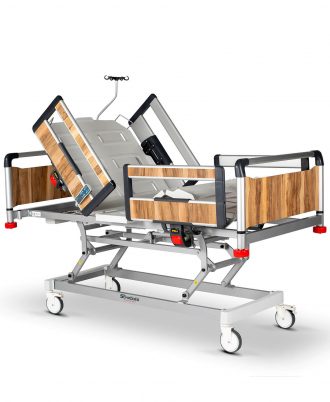

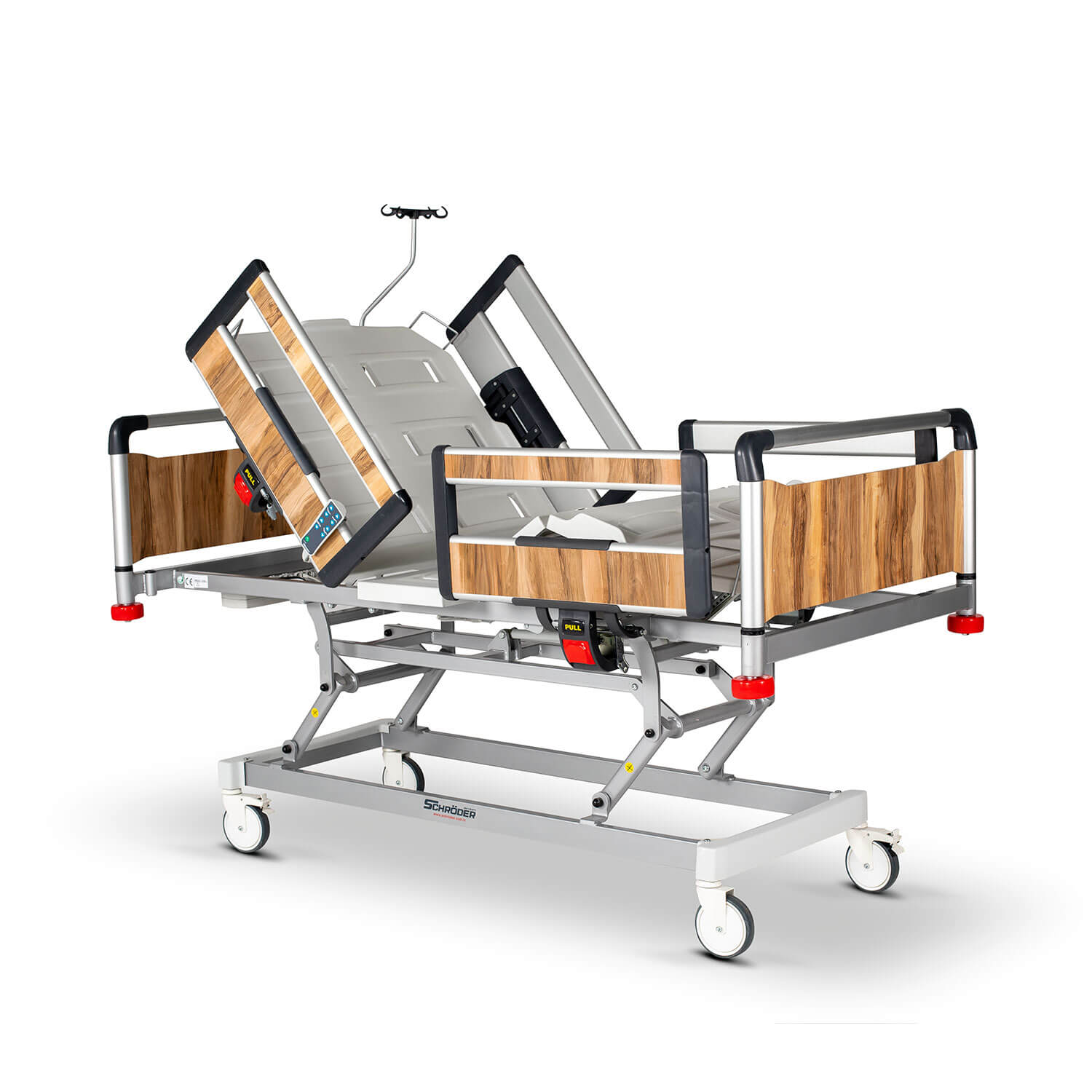

Three motorised hospital bed with aluminum side rails is the stylish design has become the definition of the truly modern healthcare bed requirements of each hospital ward and intesive care unit (ICU). The bed has been designed, built and tested for maximum durability. The monolithic supframe designed for barietric futures as well and protected with several patents.
Aluminum side rails have a lateral space consumption of 4 cm, use less space and can be effortlessly lowered with one hand. The bed has a few benifits to the patient satisfaction.
BASIC POSITIONING & ADJUSTMENTS
- Height Adjustment Motors
- Backrest Adjustment Motor
- Thighrest Adjustment Motor
- Calfrest Mechanical Ratchet
MOBILIZATION
Its powered with two liner actuators and two Lifting Scissors which are hi-tech electrical devices able to convert rotational motion in low voltage DC motors into linear push/pull movements. This is an electric bed for Intensive care units, with a mattress platform in 4 jointed sections and height adjustment performed by high load capacity with DC Motors.
PLASTIC MATTRESS PLATFORM
The 90 cm x 200 cm mattress platform of the bed has been adapted to aim the highest level of comfort for the patient. The mattress platform is made of ABS plastic parts and therefore is easy to clean , disinfect and detach. Optionally offered ergonomic design double layer 7 sections platfom specifically designed ventilation channels allow air to circulate under the mattress and reduce moisture. The mattress platform 7 sections made up recyclable and sanitizable material which is PP and silver nanoparticles (Ag NPs) compounds. 7 sections are washable easy to be removed and cleaned, with round edges and integrated mattress stoppers without sharp edges.
X-RAY
X-Ray casset aplication ready on back rest addapted to be use on bed construction. The lung X-Rays can be taken without any need for the physical handling of the patient. Optionally offerable translucent backrest part to allow directly insert an X-Ray cassette if needed and ABS plastic cassette holder will be applyable.
SIDE RAILS
Electric hospital bed avangard series side rails specially and ergonomic designed with integrated urine bag holder with angle adjustment of the positions. The bed hosts of fold-down 4 section safety sides made up an Antimicrobial material as the mixture of PP and nanoparticles (Ag NPs) compounds. The appropriate designe increases patient mobilization and reduce the efforts of sanitarians for easy cleaning and disinfection. The design of the sections specially design for extra safety to prevent fall risk greatly attain 42 cm height above the mattress platform and a total lateral containment surface for the patient, in compliance with the standard for hospital beds CE EN 60601-2-52. Side rails have a lateral space consumption of 4 cm, use less space and can be effortlessly lowered with one hand.
SAFE BED ENTRY AND EXIST
The excellent and ergonomic design of the bed’s split side rails provide full lateral protection in all positions and all times, even the bed is articulated. This helps reduce the potential strain on the caregiver as well as the risk of falls to patients. Patients can be easily moved into the most comfortable position without compromising their safety. The side rails feature a smooth and fast self-lowering mechanism with dampening system that can be set in motion with one hand for accessing patients instantly.
