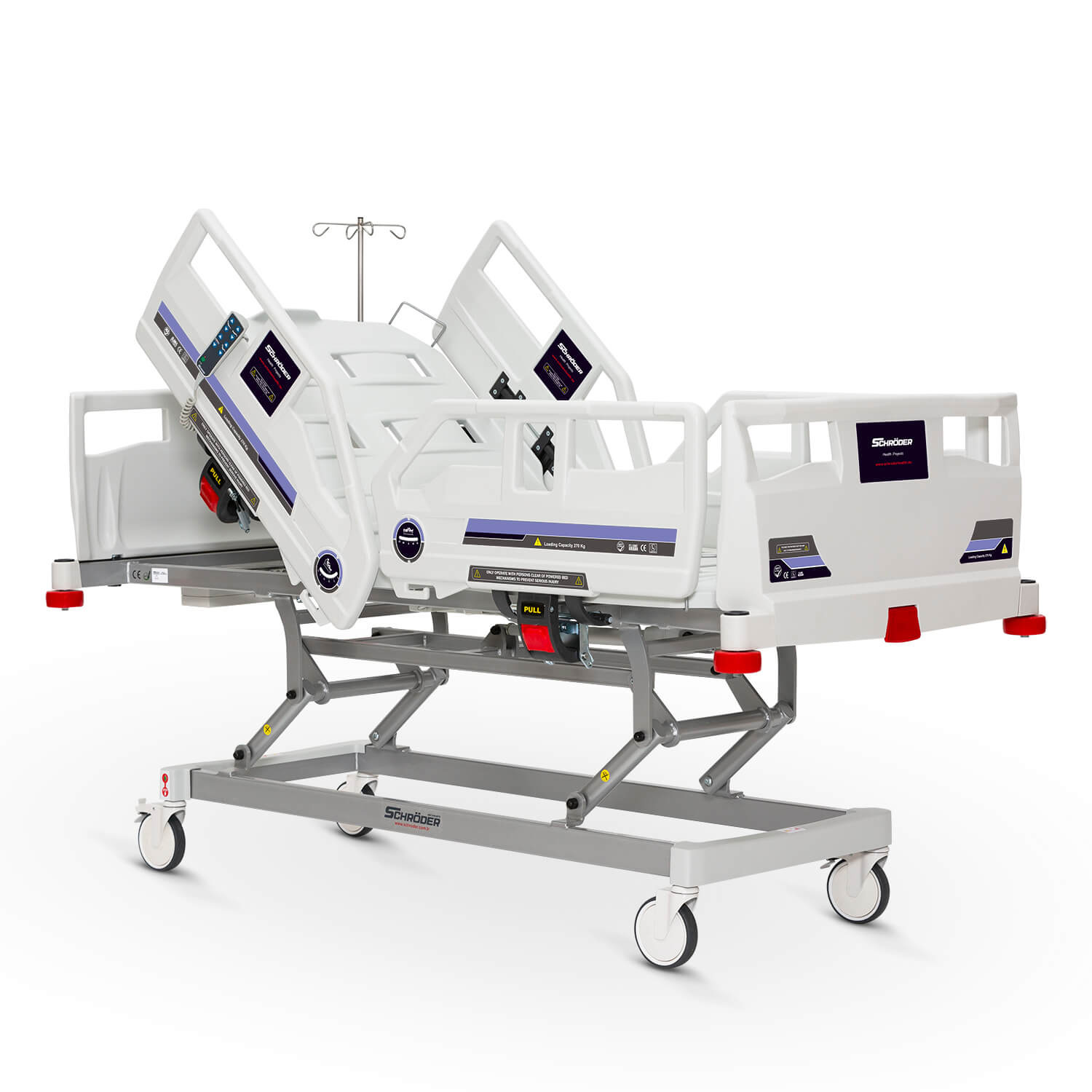

An electric hospital bed powered by 3 motors is designed for standard hospital wards and long term care units. Its stylish design has become the definition of the truly modern healthcare bed requirements of each hospital ward.
Unique modern designed is a high quality medical bed , manufactured with the use of modern technologies and protected with several patend. It is equipped with many sophisticated functions, including smart properties makes patient care easier and provides care to a higher level. Meet with the bed to improve your patients comfort, safety and satisfaction.
BASIC POSITIONING & ADJUSTMENTS
- Height Adjustment Motors
- Backrest Adjustment Motor
- Thighrest Adjustment Motor
MOBILIZATION
Its powered with two liner actuators and two Lifting Rising Arms which are hi-tech electrical devices able to convert rotational motion in low voltage DC motors into linear push/pull movements.
This is an electric bed for Intensive care units, with a mattress platform in 4 jointed sections and height adjustment performed by high load capacity DC Motors.
PLASTIC MATTRESS PLATFORM
The 90 cm x 200 cm mattress platform of the bed has been adapted to aim the highest level of comfort for the patient. The mattress platform is made of ABS plastic parts and therefore is easy to clean , disinfect and detach. Optionally offered ergonomic design double layer 7 sections platfom specifically designed ventilation channels allow air to circulate under the mattress and reduce moisture. The mattress platform 7 sections made up recyclable and sanitizable material which is PP and silver nanoparticles (Ag NPs) compounds. 7 sections are washable easy to be removed and cleaned, with round edges and integrated mattress stoppers without sharp edges.
SIDE RAILS
Electric hospital bed cura series side rails specially and ergonomic designed with integrated urine bag holder with angle adjustment of the positions. The bed hosts of fold-down 4 section safety sides made up an Antimicrobial material as the mixture of PP and nanoparticles (Ag NPs) compounds. The appropriate designe increases patient mobilization and reduce the efforts of sanitarians for easy cleaning and disinfection. The design of the sections specially design for extra safety to prevent fall risk greatly attain 42 cm height above the mattress platform and a total lateral containment surface for the patient, in compliance with the standard for hospital beds CE EN 60601-2-52. Side rails have a lateral space consumption of 4 cm, use less space and can be effortlessly lowered with one hand.
SAFE BED ENTERY AND EXIST
The excellent and ergonomic design of the bed’s split side rails provide full lateral protection in all positions and all times, even the bed is articulated. This helps reduce the potential strain on the caregiver as well as the risk of falls to patients. Patients can be easily moved into the most comfortable position without compromising their safety. The side rails feature a smooth and fast self-lowering mechanism with dampening system that can be set in motion with one hand for accessing patients instantly.
HAND REMOTE CONTROL
Advanced hand control designed for high-end CURA series hospital beds.The CURA hospital bed hand control remote has up to twelve soft-touch buttons and Illuminated led indicators comes with a protection class IPX6 Washable. This control gives users optimal overview of the many adjustment options, movement patterns, and additional features, ensuring efficiency and precision when attending to patients.
CPR
The standard future of electronic CPR adapted in all cura series electric beds .In case of emergency, the backrest can be brought down manually through a (MANUEL CPR) quick release lever available on both sides of the bed; the lever allows the adjustment at any position of the bed, even at lowest height and both with safety sides up or down locations. The schröder cura bed also offers an electric CPR function.
