Automated External Defibrillator

IPAD CU-SP1 AUTO

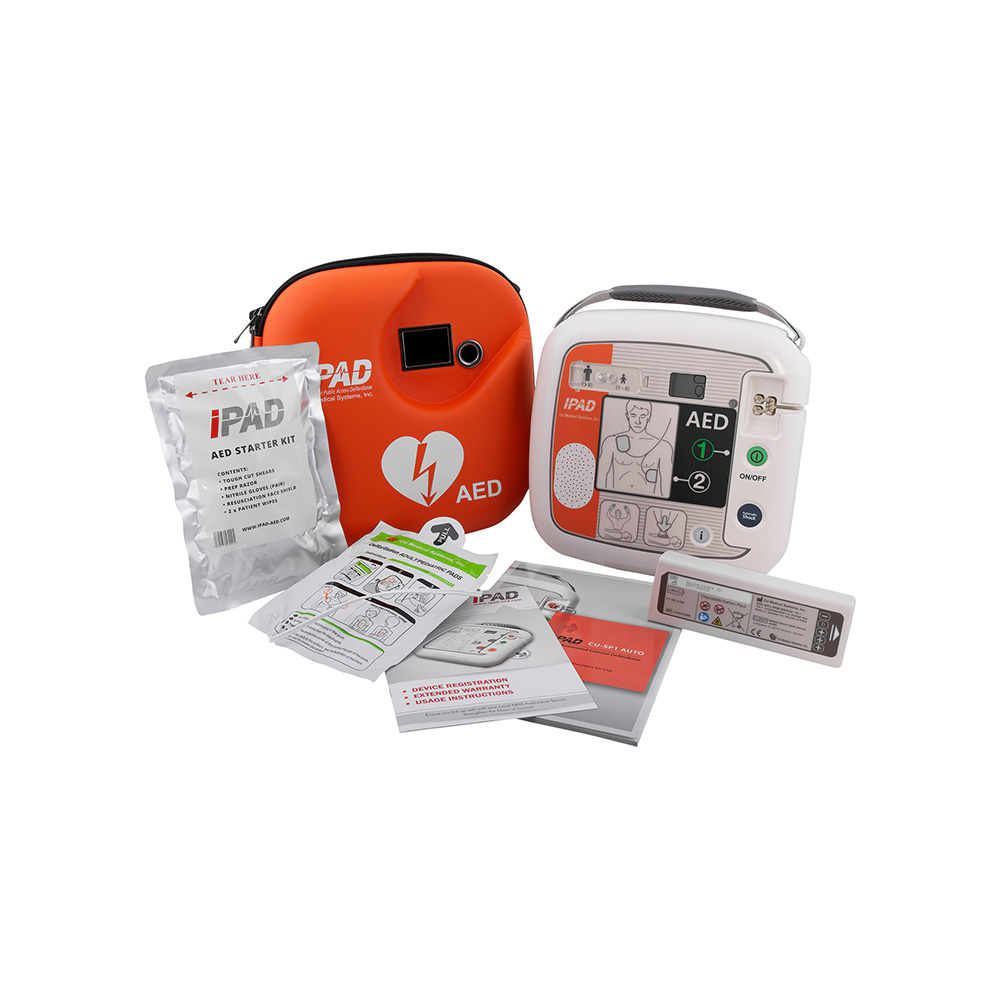

CU-SP1 AUTO is an easy-to-use Fully Automated External Defibrillator (AED) that is small, light, and portable, and uses a battery. The AED automatically reads the patient’s electrocardiogram (ECG) and determines if a cardiac arrest that requires defibrillation has occurred, so that both medical professionals and the general public can easily operate it. Cardiac arrest can occur anytime to anyone at any place and may threaten the patient’s life if the appropriate CPR and/or electric shock with a defibrillator are not applied within a few minutes.

The IPAD CU-SP1 AUTO is a Fully automated external defibrillator (AED). If connected to a patient, the IPAD CU-SP1 AUTO automatically acquires and analyzes the electro- cardiogram (ECG) of the patient for the presence of Ventricular Fibrillation or Ventric- ular Tachycardia (also known as shockable rhythms). If a shockable rhythm is detect- ed, the device automatically charges itself. After charging is completed, the equipment delivers an electric shock automatically. The IPAD CU-SP1 AUTO is easy to use. It guides the you throughout a rescue operation using voice prompts and indicators (LED and graphical indicators). The IPAD CU-SP1 AUTO is small, light, highly portable, and battery powered. It is highly suitable for use in public, out-of-hospital settings.

FEATURES

• Ambient noise detection [Auto volume adjusting]

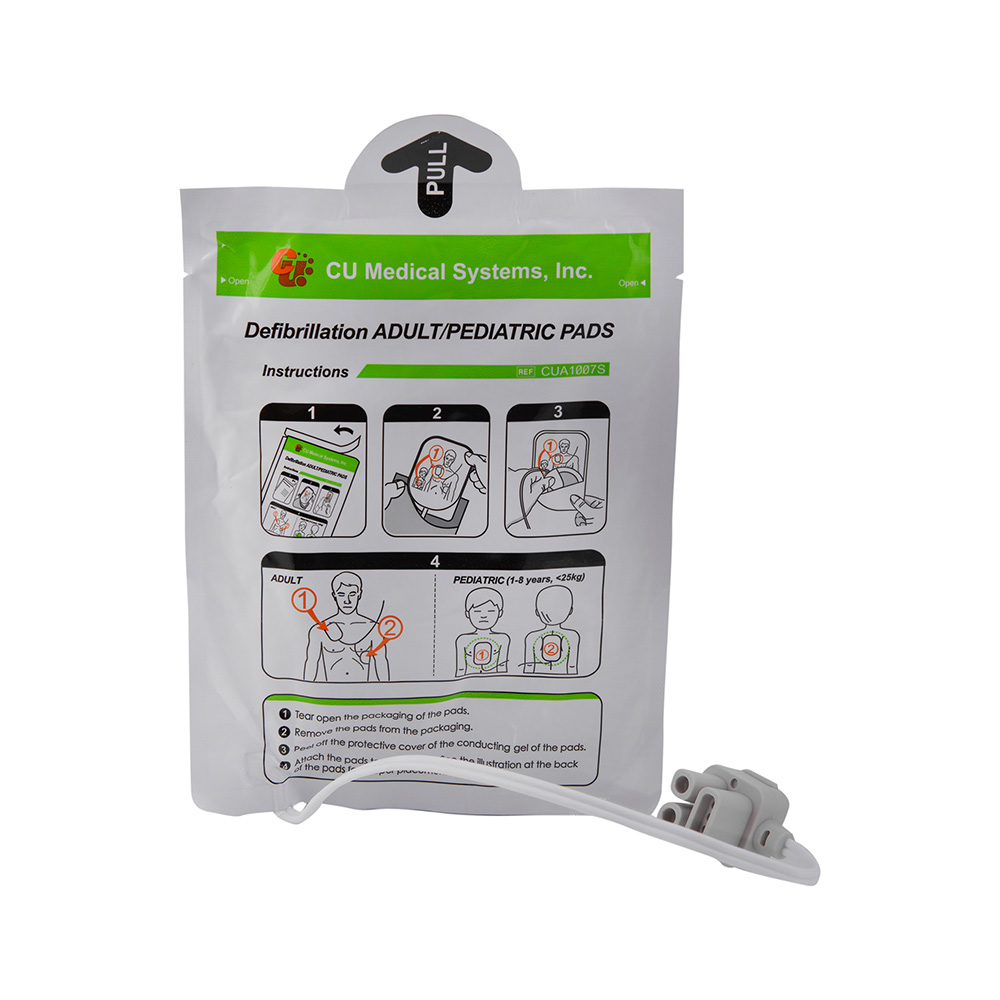

• Easy-to-use & manage Electrode (Displaying Life expectancy of Electrode) • CPR guide & Detection.

SPECIFICATIONS

Product Exterior

• Dimension: 260 x 256 x 70 mm (Width x Length x Height)
• Weight: Appr. 2.4kg (Including battery pack and pads) .

Defibrillator

• Operating Mode: Semi-automated, Full-automated(NF1201)
• Waveform: e-cube biphasic (Truncated exponential type)
• Output Energy: 150 J at 50 A load for Adults, 50 J at 50 A load for Children

Self-Diagnostic Test

• Auto
• Power On Self-Test, Run-time Self-Test
• Daily, Weekly, and Monthly Self-Test
• Manual

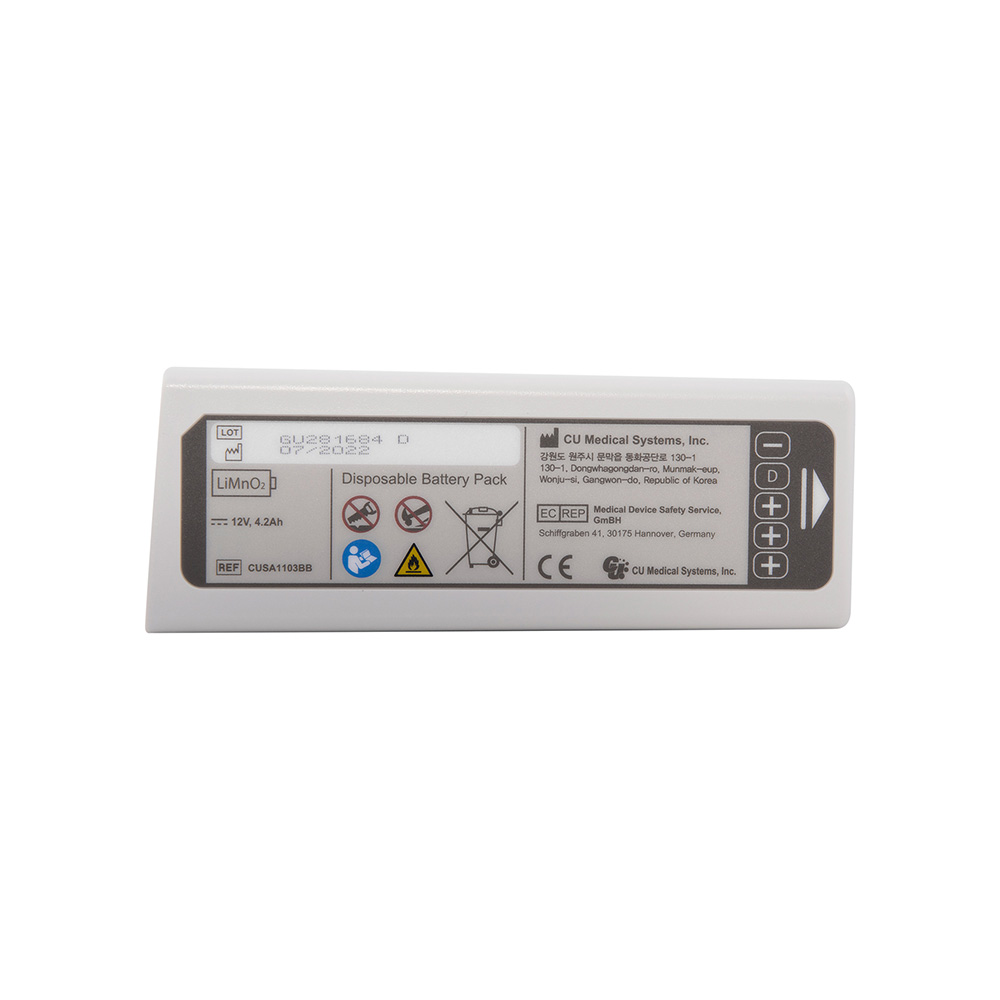

• Battery Pack Insertion Test (done when the user inserts the battery pack into the battery pack compartment of the device).
